Description

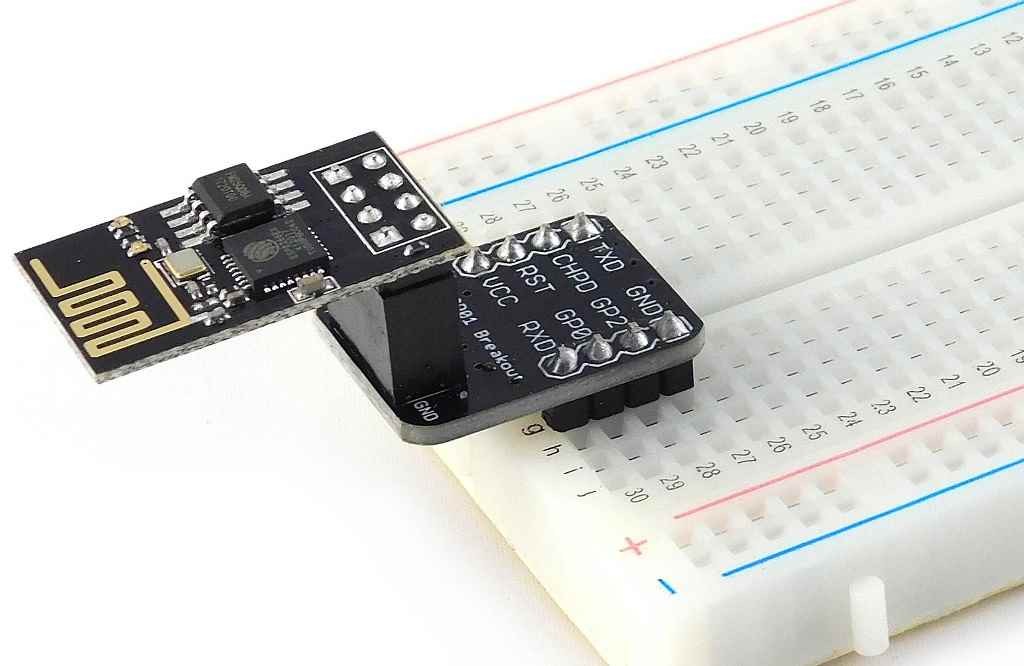

A breakout adapter for the ESP8266 01 that allows it to easily be used on a prototyping breadboard.
Features
· All pins of the ESP8266 01 broken out into a breadboard friendly layout
· 3.3 Volt regulator built in, to power the ESP8266 off 5V (or higher with your discretion) power sources
· Bootloader enable button (Hold while powering on to enable bootloader mode)
· Voltage stabilising capacitor to increase the stability of the ESP8266’s operation
· Chip Power Down (CH_PD) is pulled high by default to enable normal operation. This can be disabled by disconnecting a solderable jumper on the underside of the adapter
· Compact design with the ESP8266 sitting above the adapter
Orders will be dispatched within two days using 6-10 day international shipping
The adapter comes with the voltage regulator, capacitor and button soldered in place. The headers are not soldered for shipping purposes unless by special request.
TR :ESP8266 ESP-01 Breadbord Uyumlu Ara Çevirici Breakout Board

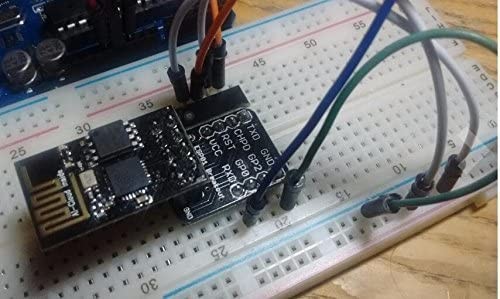

Connection:
UART Adapter
3.3V VCC
3.3V CH-PD
TX RX
RX TX
GND GND
Choose both NL CR 115200 baud rate
ESP8266-01 UNO
TX 2
RX 3
VCC 3.3V
CH_PD 3.3V
GND GND
