BMP280 BME280 3,3V Temperature Barometric Pressure Sensor Module Arduino

Рейтинг: 5.0/11
3.41 AZN
  • Артикул:
  • Наличие: 8
  • Единица: шт.
    • Выбор опции:
Купить сейчас

Please choose one of options

B for BMP280

E for BME280

BME280 can measure air pressure, temperature, and humidity, while else; BMP280 can only measure air pressure and temperatures. The BME280 unit is an upgrade to BMP280. Due to their almost similar features and parameter performance.

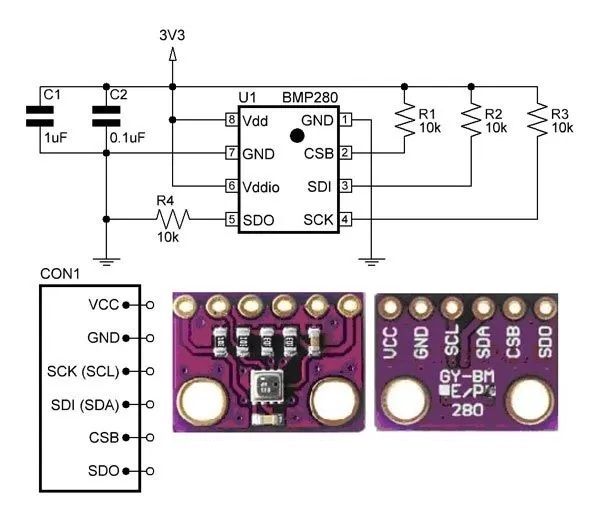

BMP280 Digital Barometric Pressure Sensor Board  I2C/SPI  3.3V Atmospheric pressure, temperature and altitude sensor

Chip: BMP280
Power supply: 3V/3.3V DC
Peak current: 1.12mA
Air pressure range : 300-1100hPa (equi. to +9000…-500m above sea level)
Temperature range: -40 … +85 °C
Digital interfaces: I²C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
Current consumption of sensor BMP280: 2.7µA @ 1 Hz sampling rate



Description

BME280, the precision sensor from , is soldered onto PCB.
Not only the pressure and the temperature, this sensor can measure humidity.
It uses both I2C and SPI (supports 3-, 4-wire SPI) interface

Specifications:

Supply Voltage: 1.8 - 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
Operational Range:
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa

Resolution:

Temperature: 0.01°C
Humidity: 0.008%
Pressure: 0.18Pa

Accuracy:

Temperature: +-1°C
Humidity: +-3%
Pressure: +-1Pa

I2C address

SDO LOW : 0x76
SDO HIGH: 0x77



Sample projects:
How to Interface BMP280 Pressure Sensor Module with Arduino
Обзор и подключение модуля атмосферного давления BMP280

BMP280 sensor Baku Azerbaycan en ucuz
